F/aid

A foldable emergency backpack
2021


F/aid,
is a foldable emergency first-aid backpack that is designed to tackle the common pain points of
a traditional first-aid kit.

A traditional first-aid kit is often extremely clustered, single-shoulder carried, and often difficult to reach for items in an emergency situation. F/aid is designed to be folded into a backpack with a zipper on top, and by simply unzipping, the backpack will unpack into two separate layers, each consisting of individual pouches for its dedicated medical items. One can either wear the bag on the back and have another person reach for the items or can simply lay the layers flat on the ground, with every item up to grabs. This design will greatly reduce the time to search for items in a clustered bag, and therefore giving full attention to the patient.

Comparable Product and Pain Points



"Too cluttered"

"They are usually only one shoulder carry"

"Have to dig in for items"

Moodboard and Inspirations


Preliminary Sketches

Untitled_Artwork 11.png

Sewing Samples



Gathering testing



Zig-zag stitches sample



Piping testing



Rubber stamps samples



Folded edge example



Stencil testing



Sample wall

Construction Process

IMG_3120 2.jpg


Print and cut patterns



Sewing process

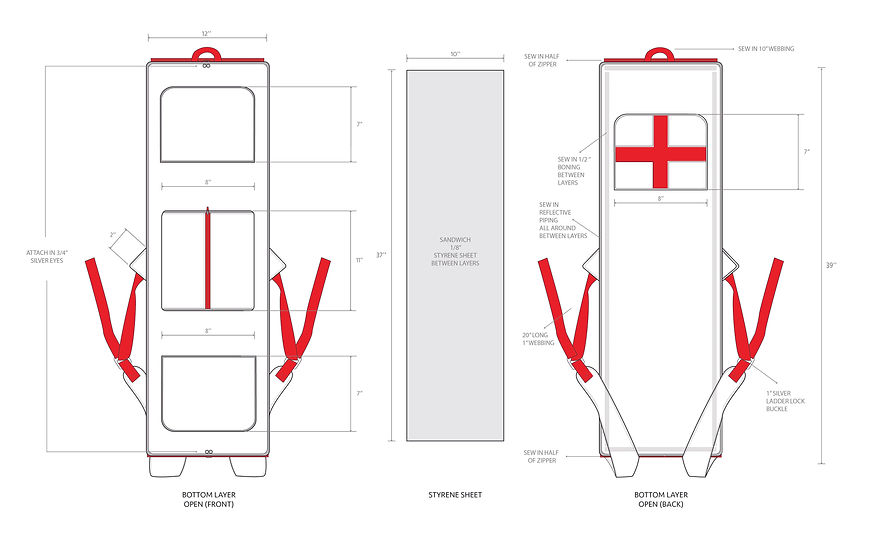

Technical Drawings and pattern sheet

technical drawings and pattern sheet-01.jpg
technical drawings and pattern sheet-03.jpg
technical drawings and pattern sheet-02.jpg


Technical drawings

technical drawings and pattern sheet-04.jpg


Pattern sheet

Final Product


Bill of Materials

Bill of materials_Page_2.jpg
Bill of materials_Page_1.jpg
